Infrapuna kaamerad
Eco Lite infrared thermal camera
€13500without VAT 111.57 €
divide into 3 parts = 45.00 €Price includes VAT 21%.
The indicated price is valid ordering till 09.05.2026.
The stock is informative
The indicated price is valid ordering till 09.05.2026.
The stock is informative

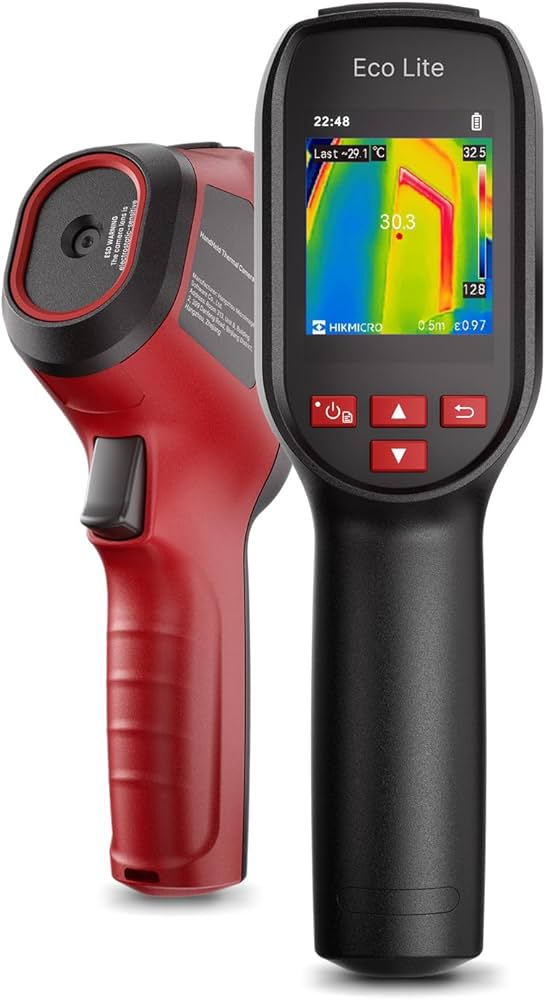

Thermal camera Eco Lite

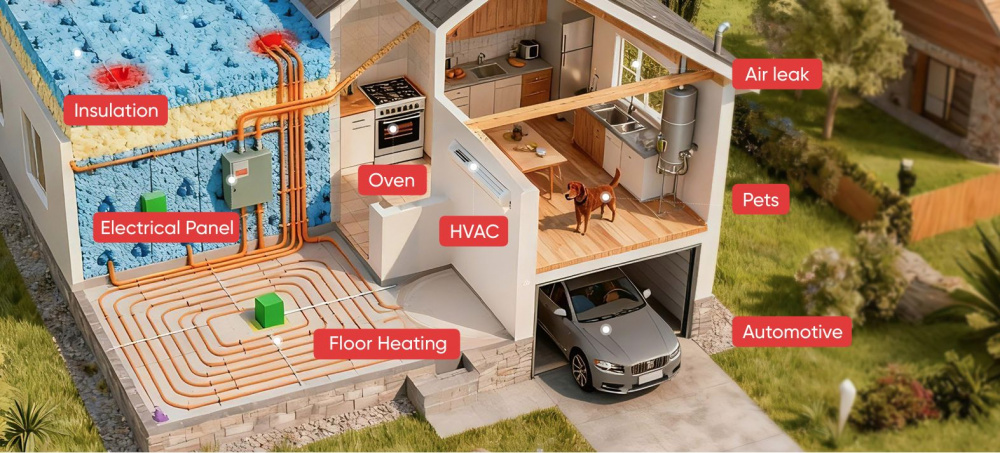

This handheld thermal imager utilizes thermal imaging technology and is specifically designed for home temperature measurement applications. It offers comprehensive functionality while remaining extremely user-friendly, featuring a spot-temperature measurement mode, making it an excellent choice for those new to thermal imaging.
Features
Thermal resolution: 96 x 96 (9,216 pixels)
Two temperature measurement methods: Thermometer Mode and Multiple Measurement Tools (Center Spot, Max Spot, Min Spot)
Built-in 80M (user available storage space is less than the nominal capacity)
Up to 14 hours continuous running
NETD:< 50mK (@ 25 °C,F#=1.0
25 Hz image frequency
Field of View (FOV): 50° × 50°
Protection Level: IP54
Infrared Image
IR Resolution: 96 × 96 (9,216 pixels)
NETD: < 50 mK (@ 25 °C, F#=1.0)
Image Frequency: 25 Hz
Detector Pitch: 12 μm
Spectral Range: 7.5 to 14 μm
Focal Length: 1.35 mm
F-number: F1.0
Field of View (FOV) : 50° × 50°
Spatial Resolution (IFOV)v 8.89 mrad
Focus Mode: Focus Free
ODE: Yes
Distance to Spot Ratio (D:S) : 15:1
Min. Focus Distance: 0.1m
Image Display
Display: 240 × 320 Resolution, 2.4”LCD Screen
Image Modes: Thermal
Color Palettes: White Hot, Black Hot, Rainbow, Ironbow, Blue Yellow
Color Alarm: Above alarm , Below Alarm
Measurement and Analysis
Object Temperature Range: Range 1: -20°C to 150°C, Range 2: 100℃ to 550℃
Accuracy: Max (±2°C, ±2%) at ambient temperature 25°C and object temperature above 0°C
Measurement Tools: Center Spot, Max Spot, Min Spot
Level and Span Mode Auto
Thermometer Mode: Yes
Data Storage and Communication
Storage Media: Built-in 80Mb
Image Storage Capacity: Approx. 500-1,000 Images (Actual storage consumption may vary based on scene complexity)
General
USB Interface: USB Type-C
Battery Type: Rechargeable Li-ion battery
Battery Operating Time: Approx. 14 hours
Battery Charging Time: Approx. 3 hours fully charged(Adapter Output：5 V 2 A)
Protection Level: IP54
Drop Test Height: 1 m
Working Temperature Range: -10 °C to 50 °C
Storage Temperature Range: 40 °C to 70 °C
Relative Humidity: < 95% non-condensing
Weight: Approx. 228 g
Dimension: 196 × 59× 78 mm
Tripod Mounting: UNC ¼”-20
